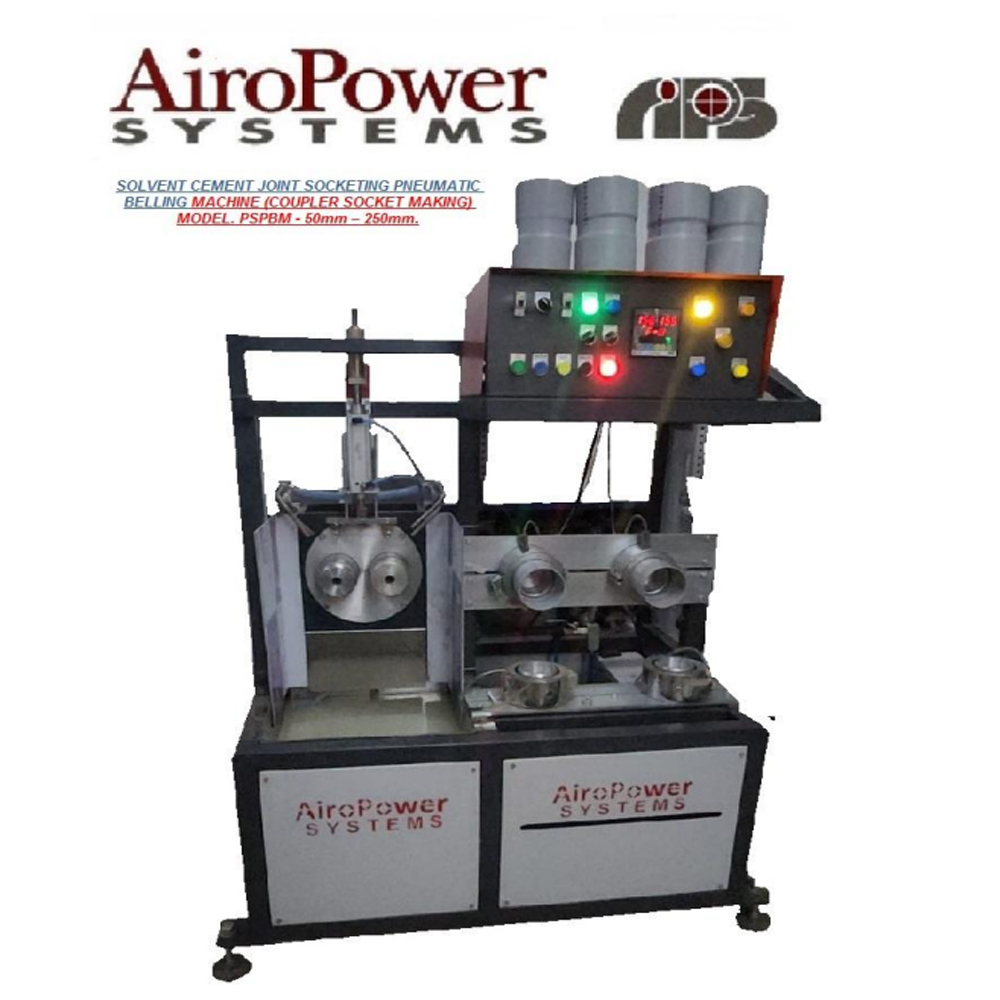

Semi Automatic pneumatically operated smooth socket PVC Pipe end belling machine from 50mm to 90mm Double Forming Station & 110 to 250mm with one forming station of Solid Steel mandrell & cooling by External water pump spray, Monogram Embossing & Ejection Automatic cyclic operation.
Two Heating cavities of each size with S. S. Heaters mounted for heating Socket portion of pipes.Compact machine with all in one digital process micro controller completely wired & plumbed unit
| Machine Dimensions | 1220mmL x 1150mmW x 1475mm H |
| Operation Range | 40 mm to 250 mm 40mm & 50mm Punch , 63mm to 200mm punch + Guide 4 kg full Set 6 Kg , 8 Kg , 10 Kg additional interchangeable Tooling parts |
| Air Supply | 6 Kg |
| Water Supply | ½” BSP |
| Eater Pump | 0.5 HP( 2800RPM) |
| Maximum Electrical Load | 4 K.W maximum |
| Temperature seating Range | 150ºC to 160ºC |
| Solenoid Valve | 5/2 x ¼ “ ( 2 Nos) |
| Pneumatic Cylinde | 100 x 100 Ejector Cylinder |
| Pneumatic Cylinde | 50 x 100 Embossing Cylinder |
| Shaft Pin (2 Nos) | 63 - 110 (Small Shaft Pin) / 125 – 250 (Long Shaft Pin) |
