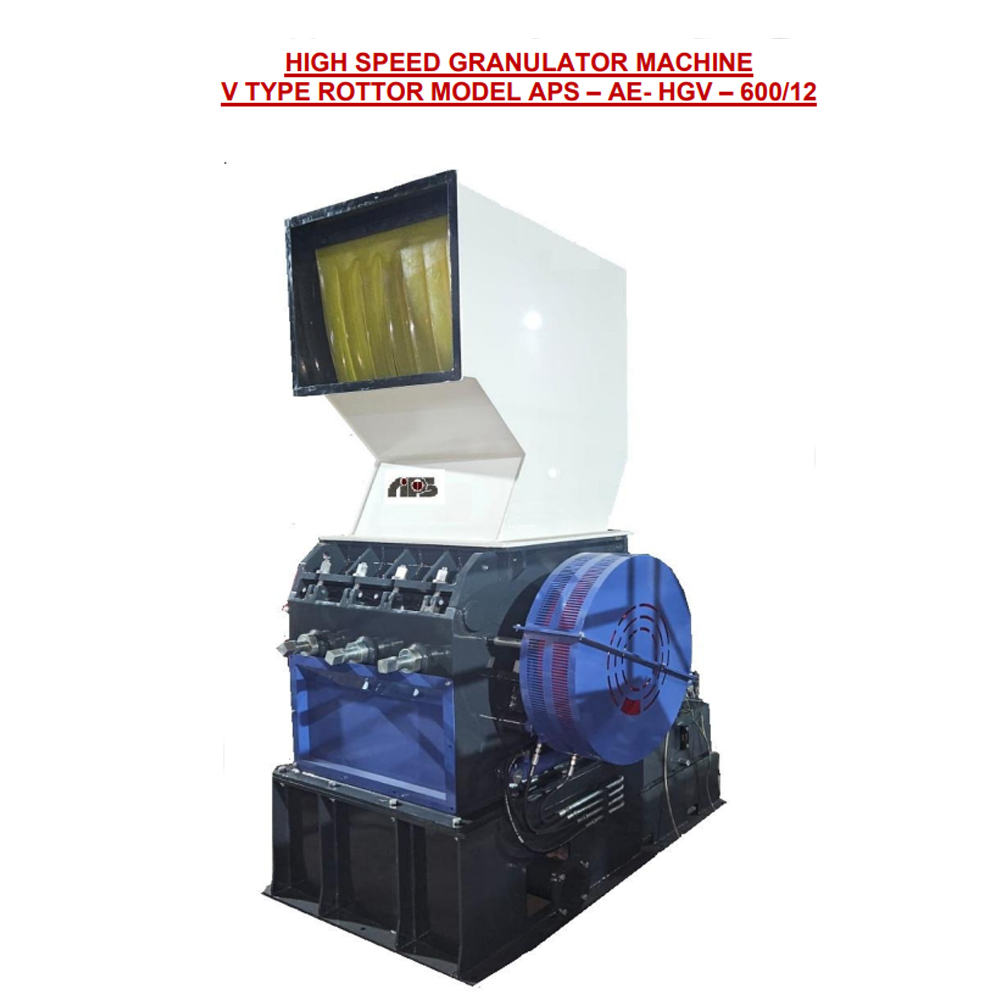

Description

Suitable for 50mm to 250mm Pipe (315, 10 Kg 1 Mtr direct Feeding)

Chamber Size:600 x 550mm

With: NTN Japan Bearing fitted 600mm Load Wheel

Hopper & Screen Hydraulic hand pump openable system

With:Latest technology V Shape 5 Wings heavy duty Aggressive rotter design.

With:WPS Grinding Blade Set (Set of 12 Blades) (300mm 10 Bled in Rotating & 600mm 2 Blade Fixed)

Panel:L&T Switch Star Delta Panel

Motor:40HP 1440 BBL Motor

Autobell R Series Aoprsm 50 160

Specification:

  • machine is built by standard material.There were use in it Essar plates, Asian pipes, EN series shafts, Jindalshimlesh pipes, Balbir –channels, NTN make Bearings, BECHEM Germany Lubricants and many more standard materials.
  • Machine Production is 600 TO 700 KG P.H. (IF FEEDING PROPER BY OPRATOR)(WE SUDGEST CONVEYOUR BELT FOR MATERIAL FEEDING CONSANTLY)
  • Many more materials crush more than 600kg P.H.
  • Machine is in one-year warranty.
  • Panel Board feted with Standard L&T and MISTIBUISHI electric product.
  • Total Power required 40 H.P.
  • 100% Guarantee in machine production efficiency.

Maintanance:

  • Greasing The Housing After every 15 DAYS
  • Blade sharpening After crush Every 30 TO 40 ton [Sometimes it will be need earlier because it’s totally depend on materialproperties]
  • Production depends on operator’s efficiency
